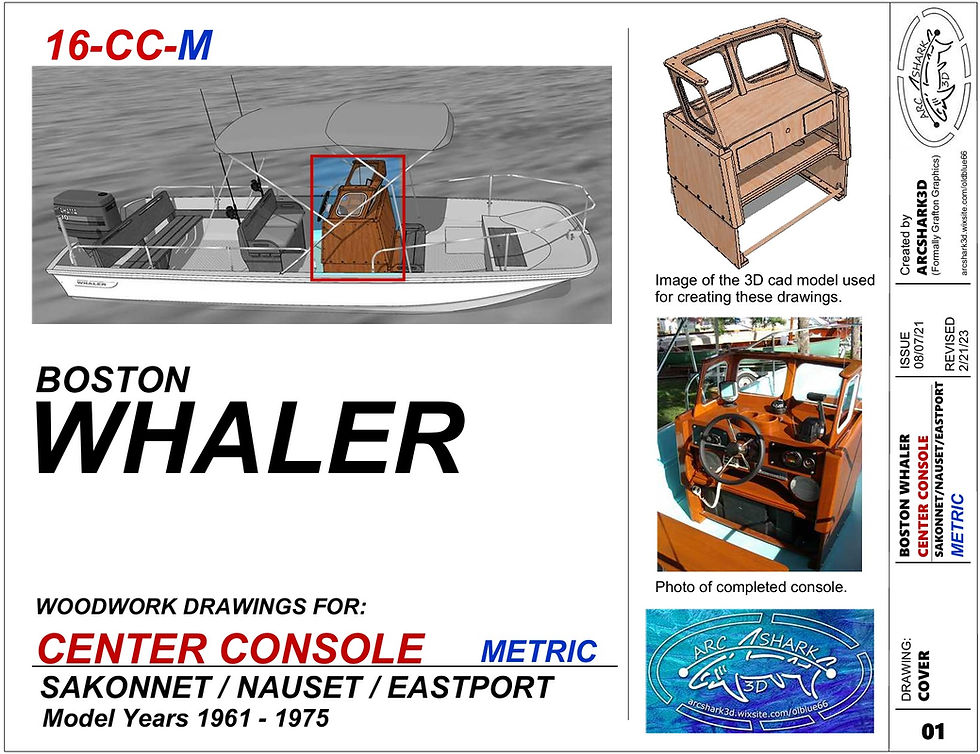

METRIC Woodwork Drawings for

16-Footer CENTER CONSOLE (30 pages)

The Center Console is an iconic and complex feature of classic Boston Whaler wooden interiors. Constructed from solid mahogany and marine mahogany plywood, the console is composed of three sections: a straightforward lower console, a more intricate upper console, and a highly complex windscreen. These drawings are an essential guide for building these components accurately.
